Why GEOLiNK
Engineered like industrial hardware, not a consumer board in a metal box.
Wide-temp reliability
All models −20~+60℃ operating, −40~+85℃ storage; watchdog 0-255s; wide-voltage DC 9-36V options.
Interfaces on demand
Up to 6×COM (RS232/422/485 selectable), 8-bit GPIO, M.2 E/B-Key for Wi-Fi / 4G-5G + SIM.
OEM/ODM customization
BOM-level options: CPU, memory, COM protocols, LAN config, TPM, LVDS/eDP, PoE. Sample in 3-7 days.
Localized platforms
Phytium E2000Q/D2000 + Kylin OS lines for domestic/integrated projects; AMD Ryzen AI & Intel Core Ultra NPU-class PCs.
Six form factors · full product line
Real boards, real specs — pick a size class to compare every model.
2.5 inch Board
AD742A · FTEQ20A · UT1002AW · PDM-5110
3.5 inch Board
AD743AW · MSK-TL5003AW · RP7003AW · UT1003AW
Mini-ITX Board
7 models incl. TOP800B, ITXD20B, TMIA70B
NANO Board
AD30NU · AD600NA · PNM-5210 · PNM-5211 · UT100NU
NUC Board
AD600CA · AR200CA · HK800CA · PX700CA · TL500CA · UT100CA
Z3.5 inch Board
AD600Z3AW · TL500Z3AW
Platforms & computing cores
Choose the silicon that fits: performance, power budget or localization.
Intel
Alder Lake-N · 11-14th gen · Core Ultra (Meteor/Arrow Lake) — DDR5 up to 96GB, HDMI2.1 8K.
AMD
Ryzen 6000/7000 & Ryzen AI 9 (NPU) for edge inference and AIoT workloads.
Phytium (CN)
E2000Q / D2000 + Kylin OS — domestic supply chains, integrated & gov projects.
Connectivity
Up to 4×2.5G (Intel i226-V), optional PoE 48V/15W IEEE 802.3af, Wi-Fi/BT/5G modules.

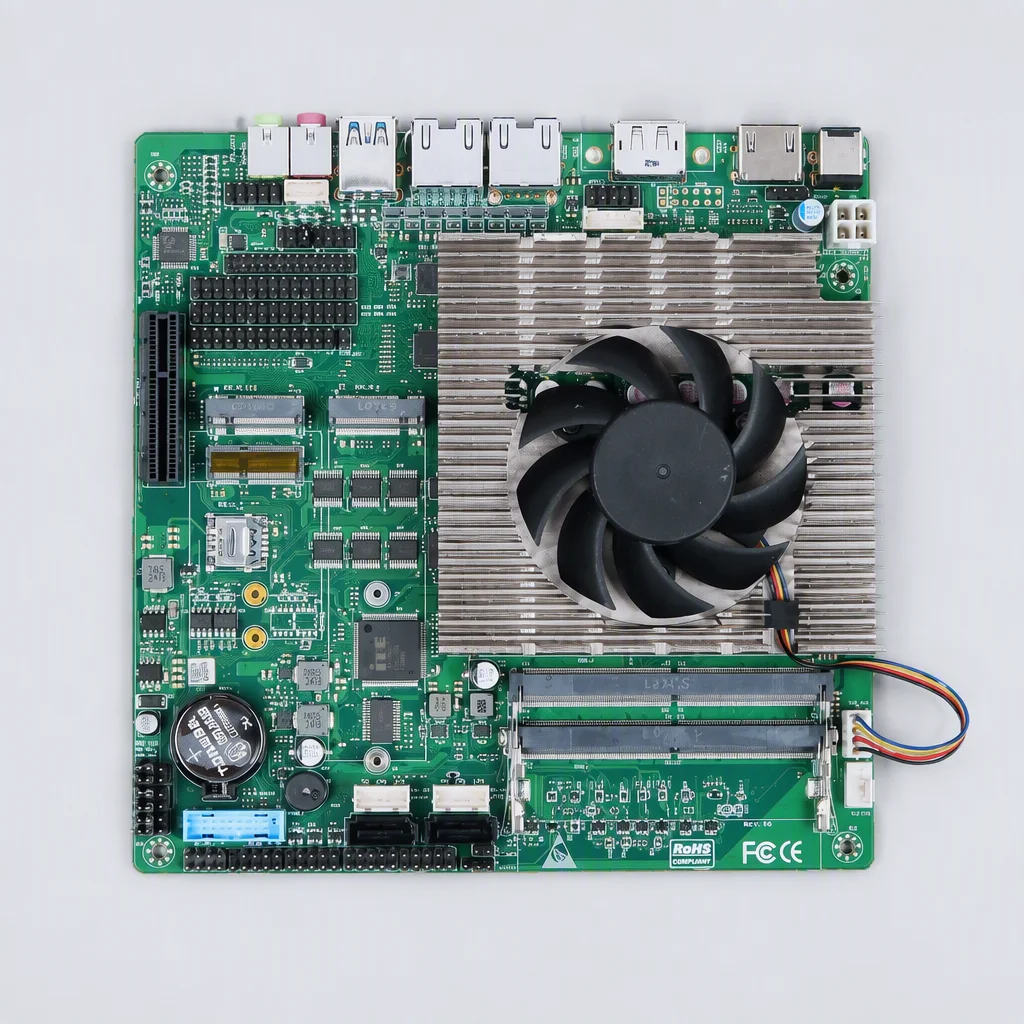

Onboard 1st-gen Intel Core Ultra (Arrow/Meteor Lake), 2×DDR5-5600 up to 96GB, HDMI2.1 8K@60Hz, 2× Intel i226-V 2.5G, six COM ports, PCIe4.0 x4 — the workhorse for industrial control and edge nodes.
| Spec | TOP800B |
|---|---|
| CPU | Intel Core Ultra (Ultra7 155H/225H) |
| Memory | 2×DDR5 SO-DIMM, 96GB max |
| Display | HDMI2.1 8K + HDMI2.0 + LVDS/eDP |
| I/O | 6×COM, 8-bit GPIO, 2×2.5G LAN, PCIe x4 |
| Power | DC 12-19V, 90W+ |
Industries we serve
Proven in the field — real pain points addressed with the right board.
Industrial Automation
Multi-COM + GPIO + watchdog for production lines and machine vision.
Medical Devices
Falnless, quiet, long-term supply for imaging and patient monitors.
Smart Retail & KIOSK
Multi-display, remote watchdog reset, edge AI for self-service kiosks.
Transportation
Wide-voltage input, ignition control, EN 50155-referenced ruggedness.
Energy & EV Charging
Data acquisition via Modbus/CAN/RS-485 for chargers and storage.
Smart Home & Signage
Low-power fanless boards for digital signage and building control.
Purpose-built for edge & industrial deployments
Every GEOLiNK board is engineered around the same three questions: how long must it run, what must it talk to, and does it survive the environment?
Edge AI & inference
AMD Ryzen AI 9 365 (HX800CA) and Intel Core Ultra platforms with on-die NPU run vision, OCR and predictive-maintenance models at the edge. 4×2.5G LAN with optional PoE (IEEE 802.3af 48V/15W) on PNM-5210 feeds camera fleets without extra power wiring.
Multi-display & HMI
From dual HDMI2.1 8K@60Hz on TOP800B to 24-bit dual-channel LVDS 1920x1200 for industrial panels, plus eDP/DP/Type-C — drive 2-4 screens with one board. Six RS232/422/485 COM ports and 8-bit GPIO handle CNC, HMI and production-log devices.
Long-life, localized & serviceable
Phytium E2000Q/D2000 + Kylin OS lines for domestic integration; −20~+60℃ operating with −40~+85℃ storage; 0-255s hardware watchdog; 100-400g boards that cool fanless (MSK-TL5003AW, 120g). BOM-frozen orders with quoted 7-10 year supply windows.
Whatever the scale, the path is the same: pick a platform, confirm the I/O profile, and freeze the BOM. We publish 25 PDF spec sheets across 6 form factors, support BOM-level options (CPU, memory size, COM protocols, single/dual LAN, TPM, LVDS/eDP, PoE), and quote from 1 sample unit up to 50-300 piece OEM runs — with NRE covered up front and first batches delivered in 3-5 weeks. Engineering answers within 24 hours, watchdog sample code ships with every development kit, and every board goes through SMT → AOI/X-Ray → ICT/FCT → full −20~+60℃ aging → 100% final inspection before it leaves Shenzhen.
Need a custom or B2B quote?
Engineers reply within 24h — selection advice and full spec sheets included.
Certified & quality-assured
FAQ — quick answers
Samples start from 1 pcs (3-7 days). BOM-customized runs typically 50-300 pcs with NRE for tooling; first batch 3-5 weeks.
Windows 10/11, Linux, and Kylin OS on Phytium platforms. Drivers and watchdog samples are provided.
Yes — industrial projects (e.g., medical, 7-10 year lifecycles) can be quoted with guaranteed supply windows; OEM/ODM builds are BOM-frozen per order.
SMT → AOI/X-Ray → ICT/FCT → full-temperature aging (−20~+60℃) → 100% final inspection before shipment, per IPC-A-610.
